Smartbore Plus+

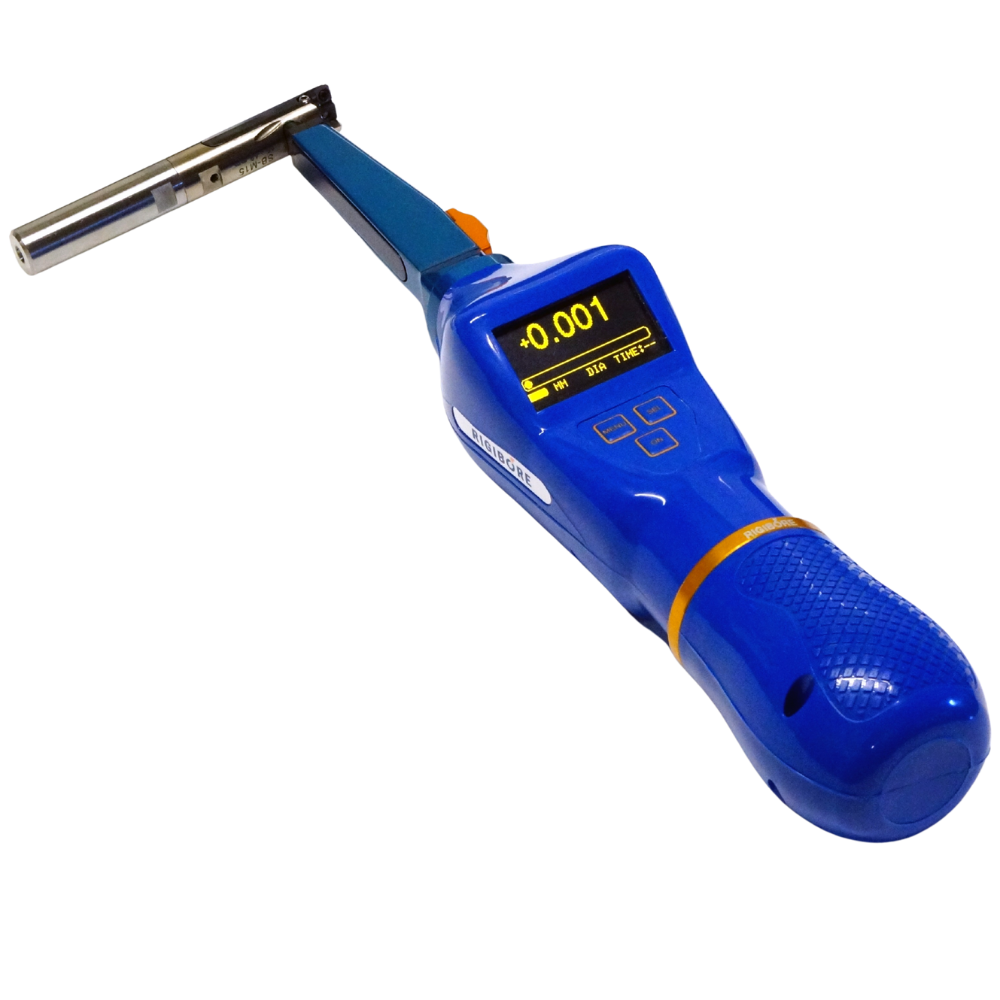

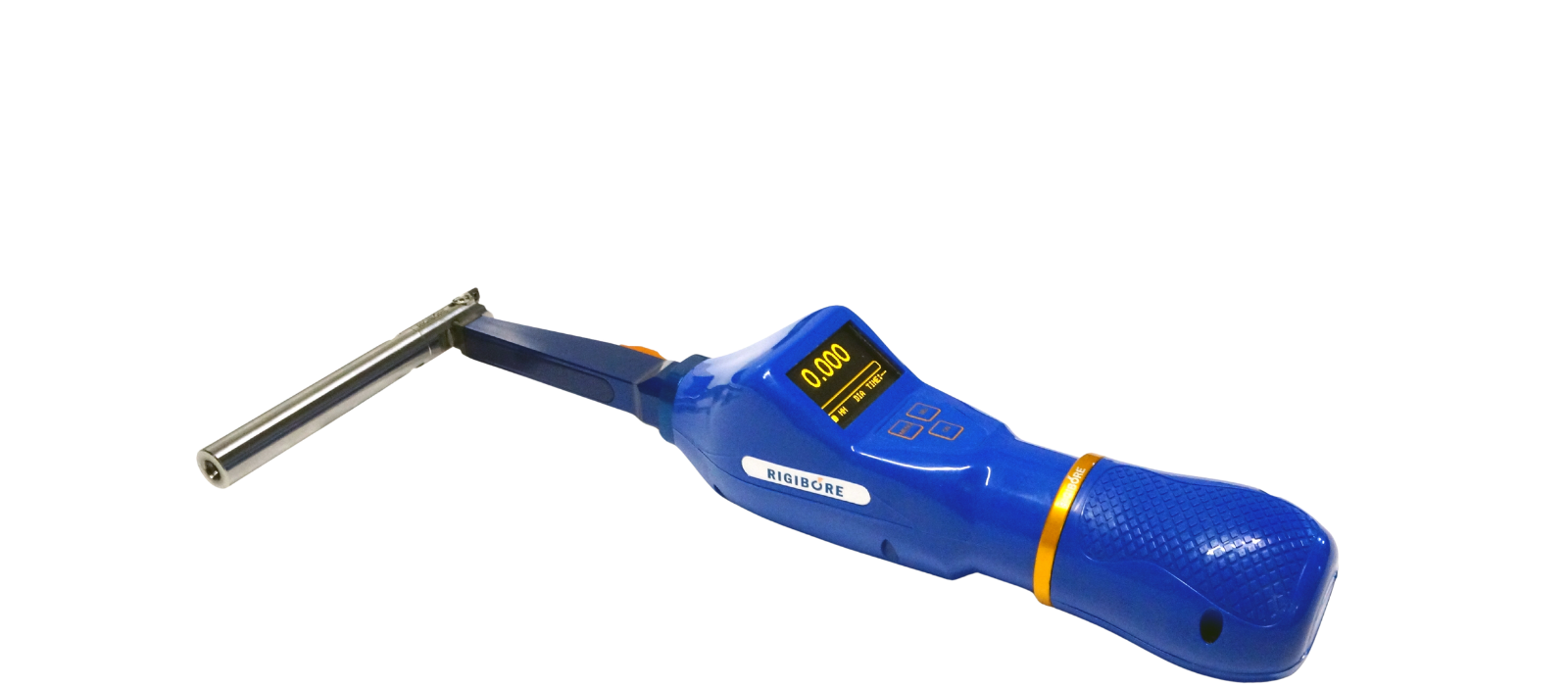

The Smartbore Plus+ boring head is suitable for a range of bore sizes.  Adjustment is quick and simple; set the diameter roughly using an allen key and refine the exact diameter using the Smartbore Adjuster.

SB-M15 — 15mm (0.5090″) — 18.5mm (0.728″)

SB-M18 — 18mm (0.709″) — 22mm (0.866″)

SB-M20 — 20mm (0.787″) — 31mm (1.220″)

All boring heads feature replaceable ‘insert holders’ that support the following inserts:

SB-M15 — CC04T0

SB-M18 — CC06/TP08

SB-M20 — CC06/TP08

KEY BENEFITS

Micron accurate adjustment by using the standard Smartbore Adjuster.

Precise adjustment over a range of bore sizes is possible by means of the coarse adjustment feature.

Digital fine adjustments are made without the need for clamping/unclamping.

Different holders to support insert geometries (and also back boring) can be purchased separately.



The Smartbore Plus range will cover bore sizes from 15mm (0.590″) upwards on diameter.

Click here to download Smartbore Plus+ Information

Type: pdf

Size: 4.31 MB

Download
